AEROX INDUSTRIES
Dry ice blasting nozzle
Velocity L High-Impact Dry Ice Blasting Nozzle
Choose the pattern. Match the process.
A focused high impact nozzle for operators working on stubborn contamination with a compatible high airflow system.
100+ CFM recommended10 in length1/2 in NPT
PURPOSE BUILT FOR YOUR WORK
Features that support the process
01
Direct the blast
High impact focused pattern supports the appropriate cleaning approach.
02
Use a matching connection
Confirm thread size and adapter compatibility with your blasting gun.
03
Set the cleaning intensity
Pressure, particle size and ice feed determine the effect on the surface.
APPLICATIONS
Where it fits
Components and assemblies
Target compatible parts with suitable access and tested settings.
Industrial maintenance
Remove compatible residues from equipment and tooling.
Restoration
Review substrate sensitivity before selecting the nozzle and process.
PRODUCT DETAILS
Specifications at a glance
| Recommended airflow | 100+ CFM |
|---|---|
| Published ice feed range | 0–7+ lb/min, subject to machine capacity |
| Published pattern dimension | Approx. 19/64 in focused stream |
| Length | Approx. 10 in |

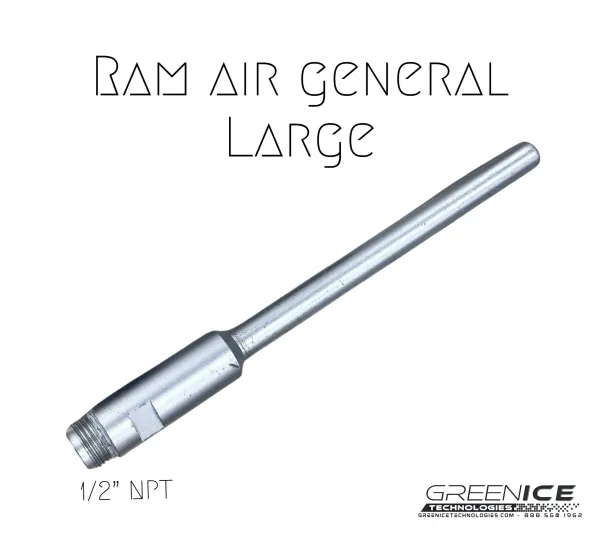

| Connection | 1/2 in NPT |
| Material | 6061 aluminum |
| Finish | Raw aluminum or black anodized, depending on stock |
| Adapter | Revive R1 quick disconnect included |
PLAN THE RIGHT SETUP
Selection and operating notes
- Match nozzle demand to sustained compressor airflow and the blaster feed capacity. A nozzle specification does not increase the output of the connected machine.
- Always operate within the lowest rated limit of the complete system. Test the surface and adjust pressure, stand off distance and particle size before full cleaning.
