AEROX INDUSTRIES
GreenICE ForgeLine 60 Series

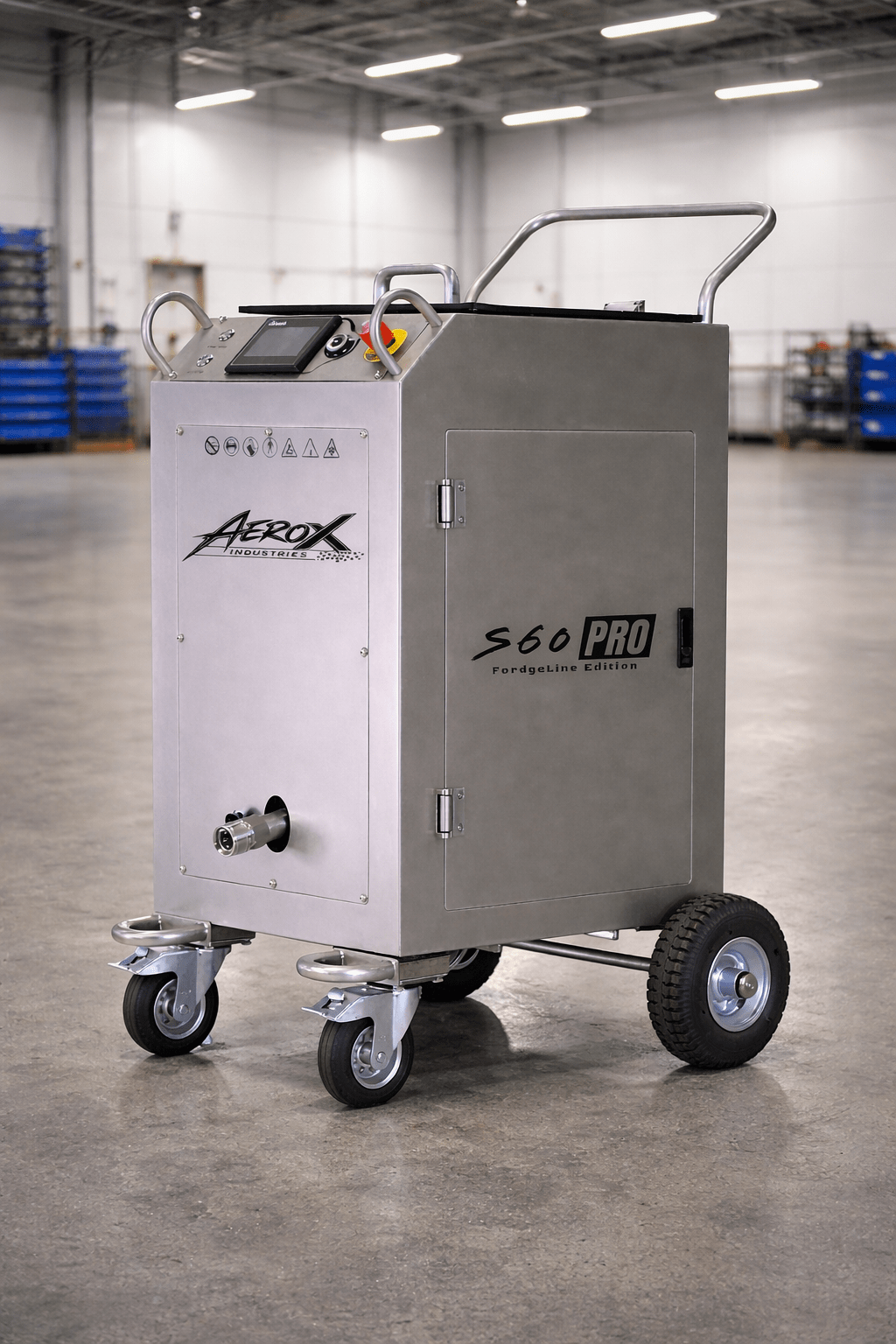

S60 Pro
Digital control with dry ice and abrasive capability.
The S60 Pro brings PLC controls and a high airflow platform to professional cleaning and surface preparation. Its optional media hopper supports dry ice cleaning, fine abrasive blasting or a combined process when the job requires additional cutting action.
PURPOSE BUILT FOR YOUR WORK
Features that support the process
01

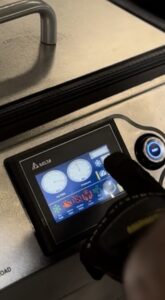

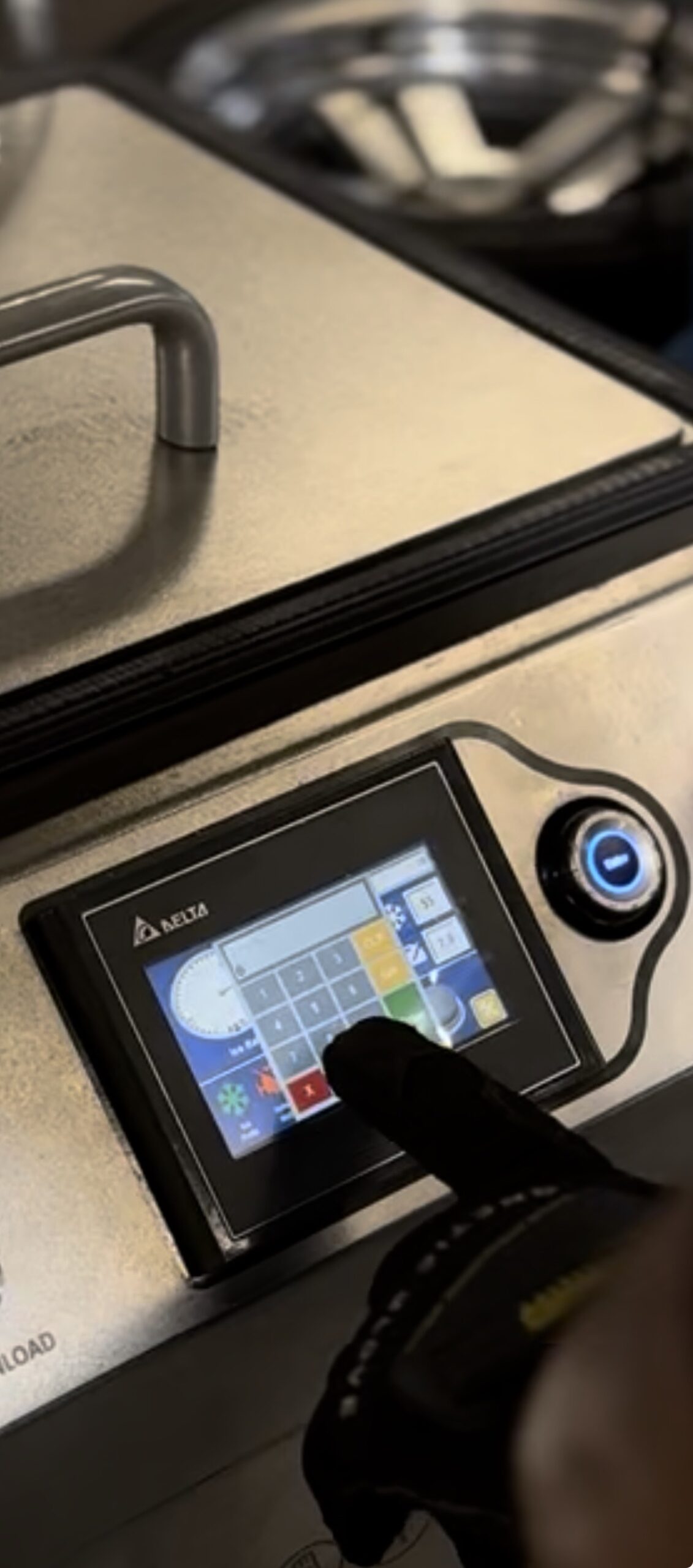

Set and monitor output
The digital interface provides control over ice feed and operating settings.
02
Expand your process
The optional media system supports fine or ultra fine abrasives in suitable applications.
03
Match the nozzle to the task
Starter nozzles and a fragmenting adapter provide options for coverage and particle size.
APPLICATIONS
Where it fits
Industrial maintenance
Clean compatible machinery and heavy equipment with an appropriately sized air system.
Restoration
Evaluate dry ice or combined media for fire, smoke and automotive restoration work.
Surface preparation
Use suitable abrasive media where material removal or a surface profile is required.
PRODUCT DETAILS
Specifications at a glance
| Platform | ForgeLine 60 Series |
|---|---|
| Air inlet | 1 in NPT |
| Air volume | 80–350 CFM, dependent on nozzle and pressure |
| Standard maximum pressure | 145 PSI |
| Hopper capacity | 60 lb |
| Power supply | 120V / 60 Hz |
| Control system | PLC digital interface |
| Media capability | Fine abrasive or combined dry ice and media |
| Weight | Approximately 243 lb |
| Warranty | 1 year limited; exclusions and full terms apply |
PACKAGE DETAILS
What is included
- Media hopper and attachment system available as an optional add-on; confirm the ordered package
- Fragmenting adapter
- Two starter nozzles
- Protective nozzle case
- Retractable grounding strap
Pressure package options
The standard S60 Pro is rated up to 145 PSI (10 bar). An optional high-pressure package rated up to 232 PSI (16 bar) is available by quotation on this same model. Request the high-pressure package when ordering so the machine, blast hose, gun and fittings are specified for the intended working pressure. Package pricing and required compressor airflow are confirmed with your quote.
Request an S60 Pro configuration quote
Configuration review
Confirm air demand, ice feed range, dimensions and delivered accessories with AeroX for the configuration ordered.
PLAN THE RIGHT SETUP
Selection and operating notes
- The required airflow changes substantially with nozzle size and pressure. The manual recommends 80 CFM minimum for 1/2 in nozzles and 180+ CFM for 3/4 in nozzles.
- The 232 PSI configuration is a separate high pressure option. Do not exceed the rating of the delivered machine or any connected component.
- Use only approved fine media. Abrasives can change the substrate and create dust; follow the manual and application controls.
Choose the smart electric model
The S60 Pro suits operators who want a screen to adjust and monitor blasting settings during industrial maintenance and restoration work. Its PLC interface provides a visible reference for operating settings. Available software, presets and automation functions are confirmed for the ordered build.
Compatible add-ons
Add the abrasive media hopper and sandblasting attachment for compatible surface-preparation work. Specify approved media, a suitable gun and nozzle, dust controls and the required finish when ordering. Abrasive blasting removes material and may change the surface profile. Attachment capacity, fittings and ratings are confirmed with your quotation.
Choose the standard 145 PSI (10 bar) machine or request the optional high-pressure package up to 232 PSI (16 bar). High-pressure operation requires a correctly rated machine, gun, hose, fittings and air-treatment system. Media-package compatibility at 232 PSI must be confirmed separately.
