AEROX INDUSTRIES
AeroX compressed air systems

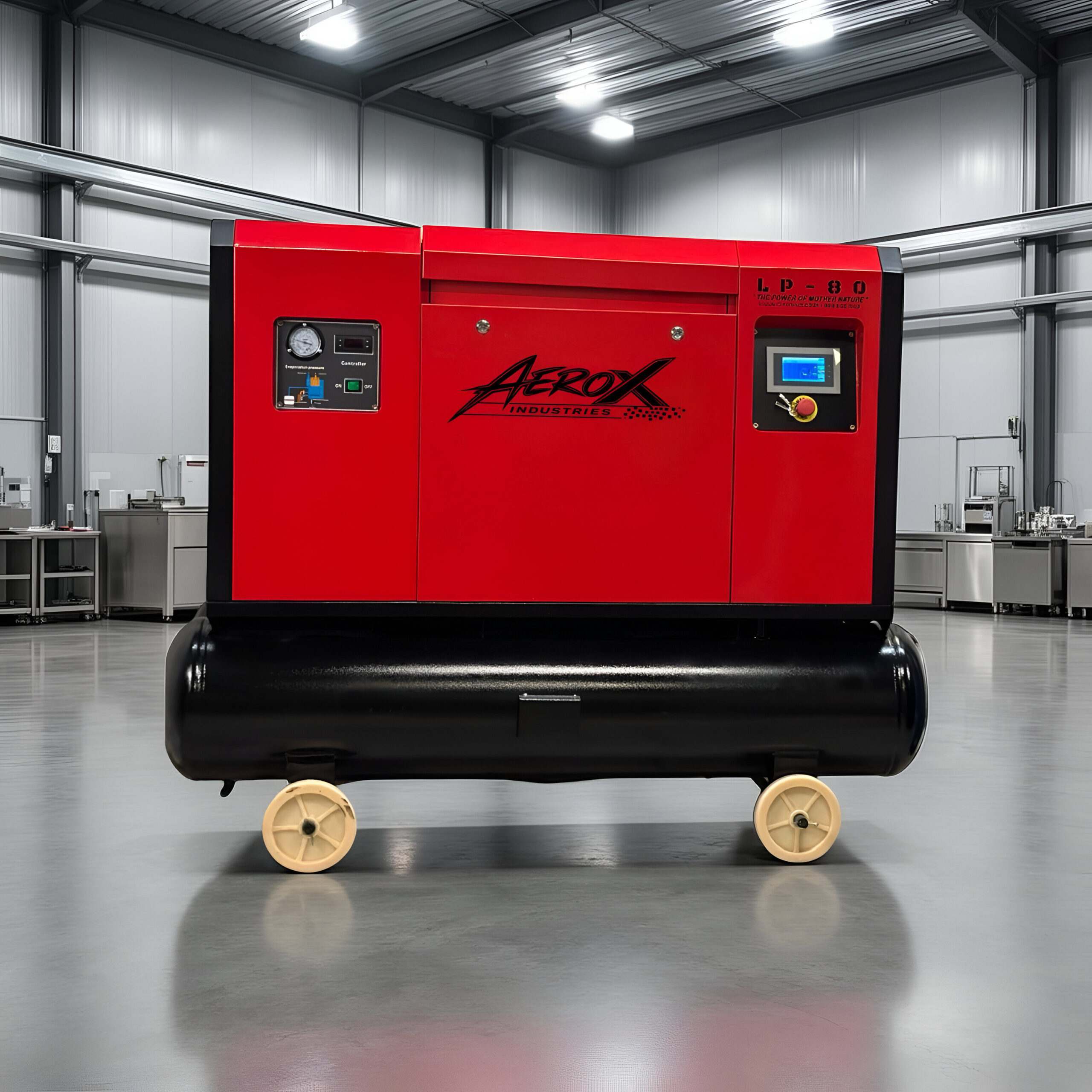

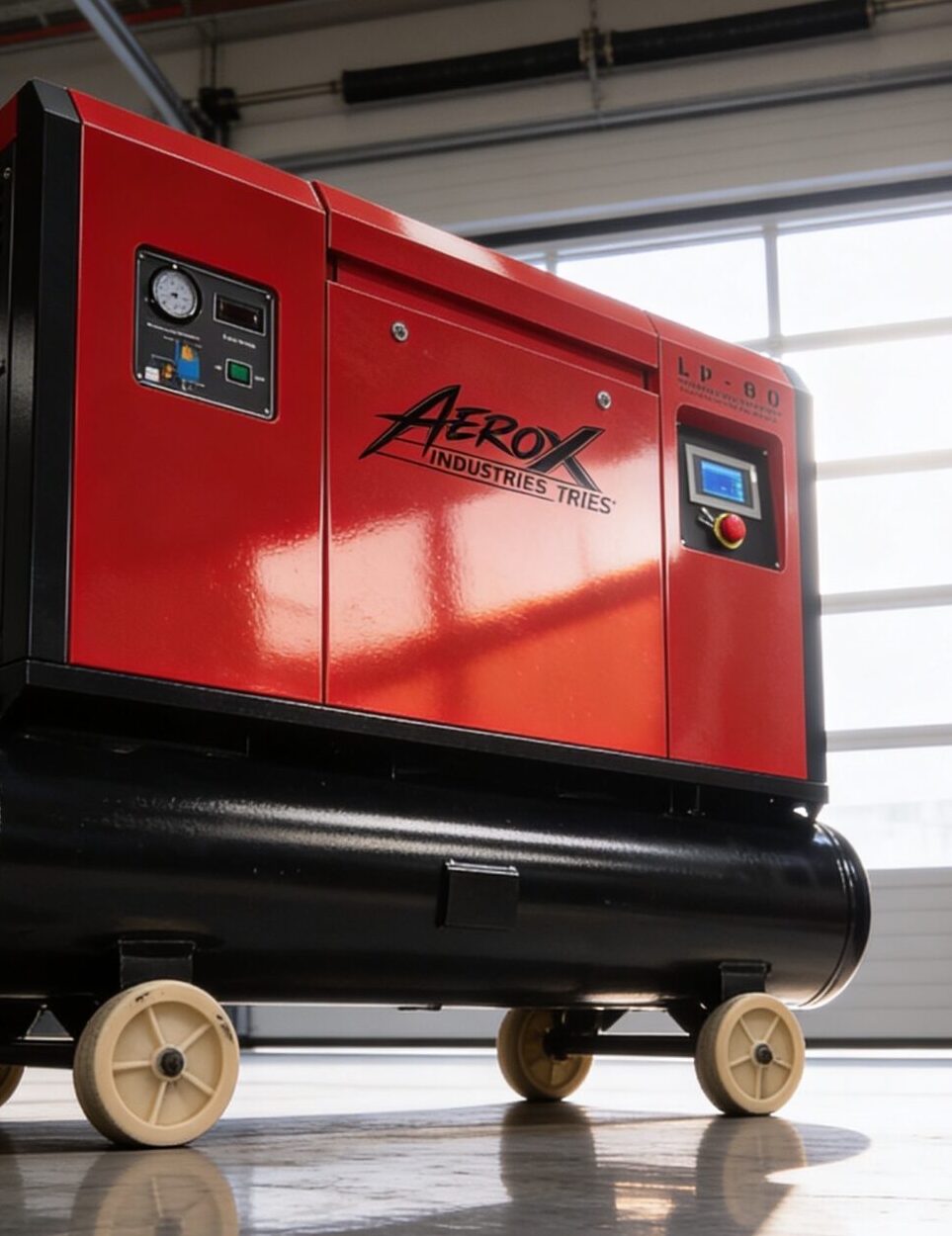

AeroX LP80
A complete foundation for your air powered workflow.

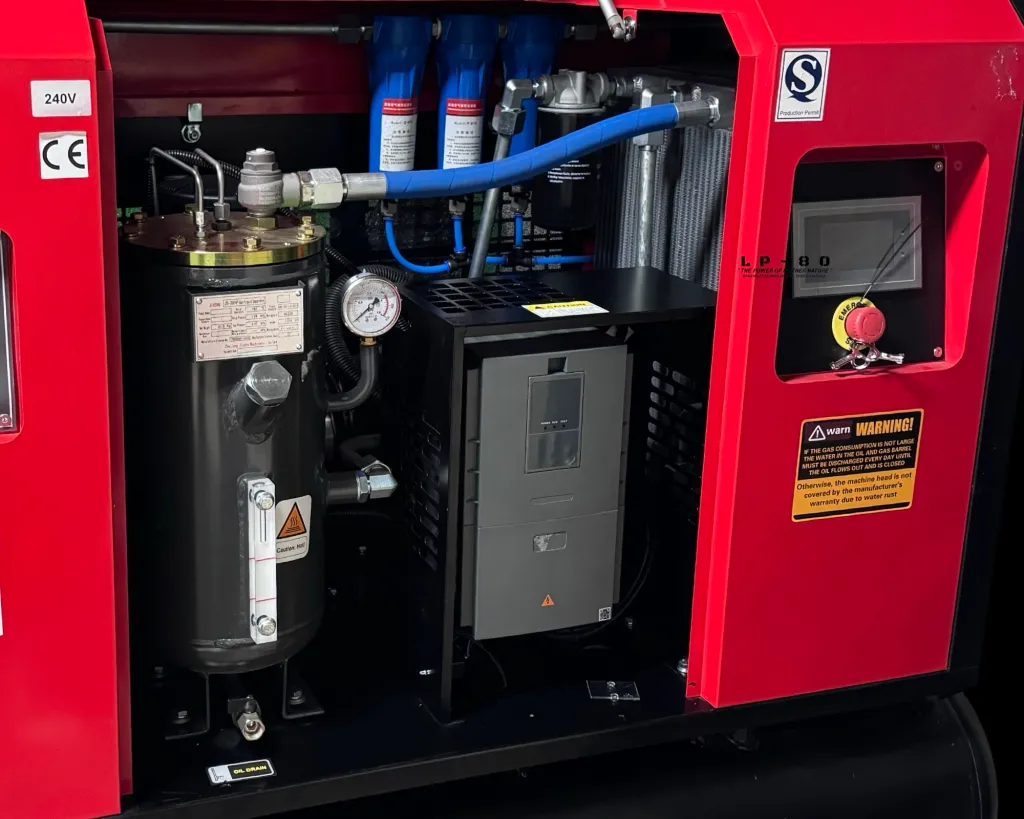

The AeroX LP80 pairs a 20 HP rotary screw compressor with an integrated receiver, refrigerated dryer and filtration for a coordinated shop air system. Match the system to sustained tool or blasting demand at the required working pressure.
PURPOSE BUILT FOR YOUR WORK
Features that support the process
01
Supply sustained demand
Rotary screw compression supports an appropriately sized continuous air workload.
02
Coordinate air treatment
Integrated drying and filtration simplify the layout.
03
Monitor operation
Digital controls provide operating information and system alerts.
APPLICATIONS
Where it fits
Shop and fabrication
Supply compatible air tools and production equipment.
Dry ice cleaning
Match compressor output to the blaster, nozzle and working pressure.
Process air
Configure filtration and drying around the required air quality.
PRODUCT DETAILS
Specifications at a glance
| Compressor type | Rotary screw |
|---|---|
| Motor power | 20 HP |
| Air delivery | Approximately 90 CFM at 116 PSI |
| Maximum pressure | 145 PSI |
| Power configuration | 240V / 60 Hz / single phase |
| Integrated receiver | 132 gallons |

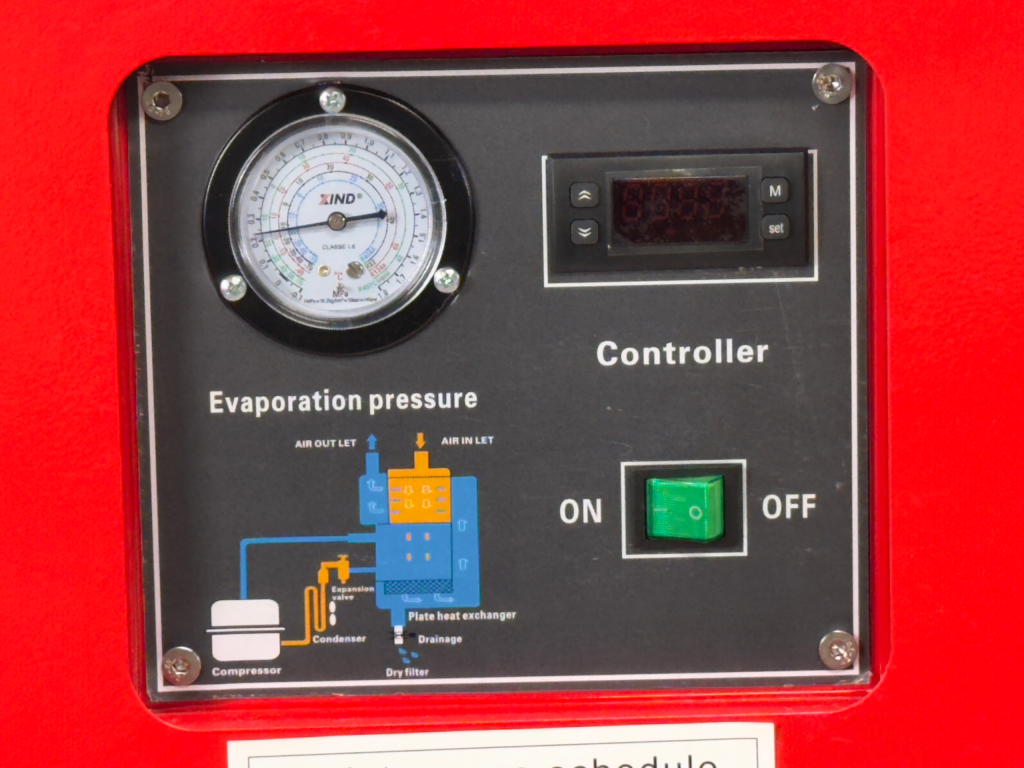

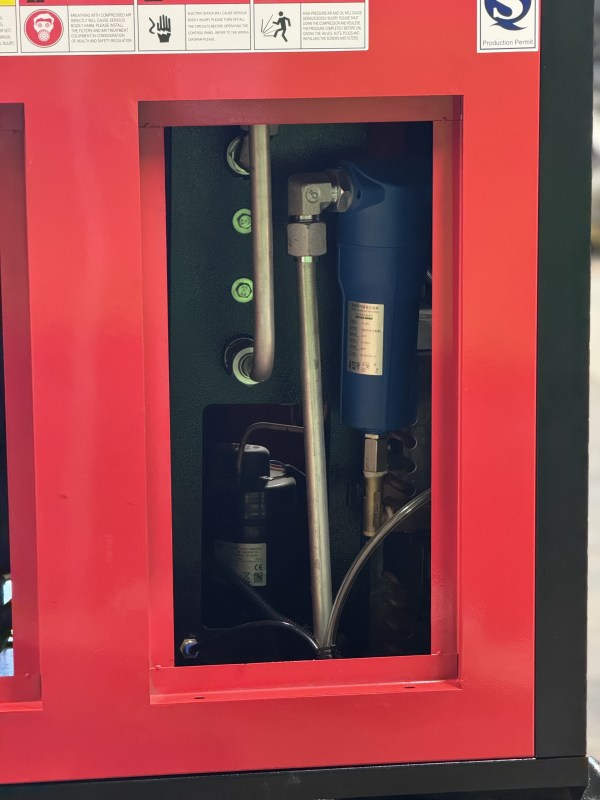

| Air dryer | Integrated refrigerated dryer |

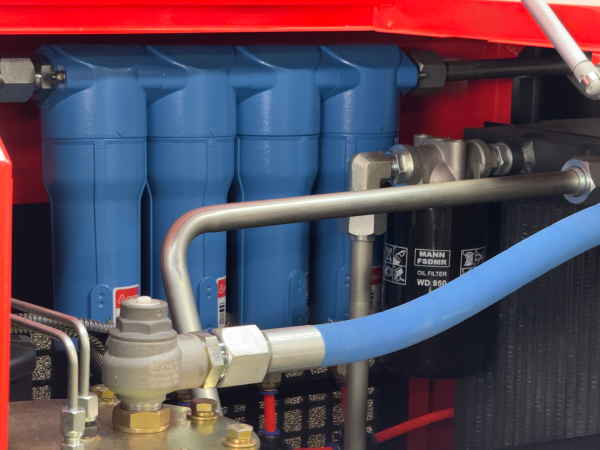

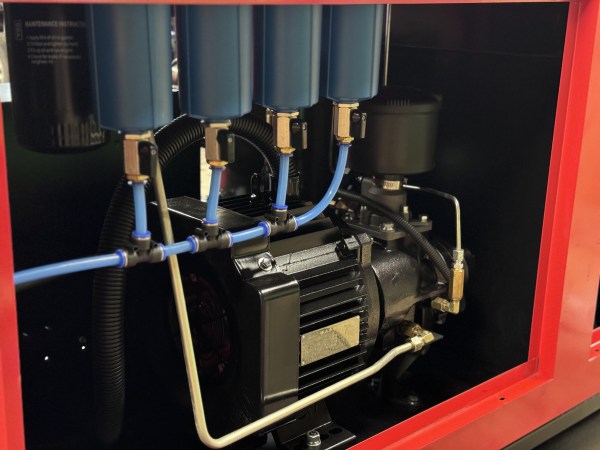

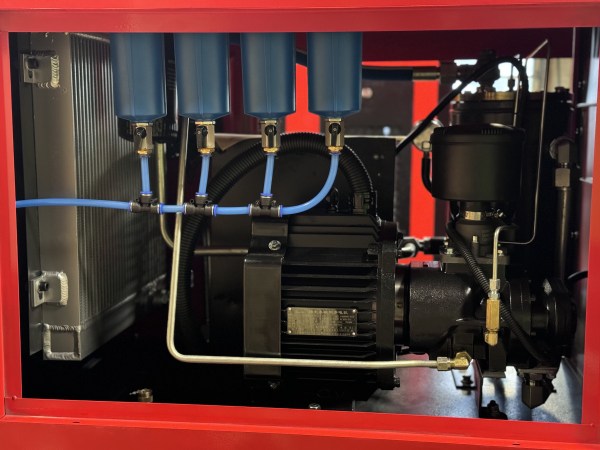

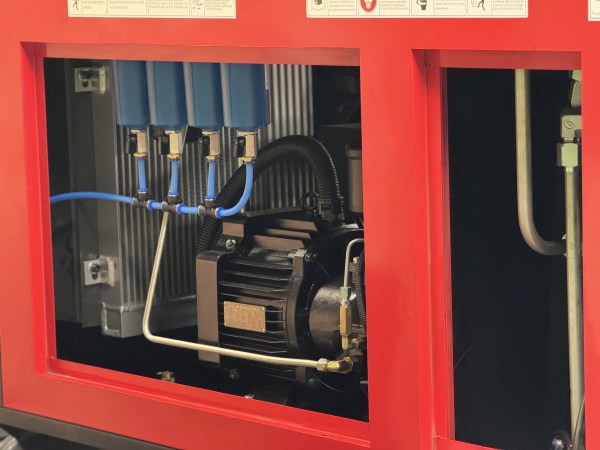

| Filtration | 4 stage main filtration plus dryer prefilter |
Configure before ordering
AeroX can review receiver capacity, dryer selection, filtration, electrical configuration and optional upgrades. Confirm freight and the final specification with the quotation.
PLAN THE RIGHT SETUP
Selection and operating notes
- Rated airflow is specified at 116 PSI. Actual system performance depends on pressure, ambient conditions, hose sizing and total connected demand.
- A receiver tank provides reserve volume; it does not increase continuous compressor output. High flow nozzles or multiple operators may require a larger system.
- Confirm voltage, phase, nameplate current and starting requirements for the delivered machine. A qualified electrician must size the circuit and installation.
- Refrigerated drying does not deliver the same dew point as desiccant drying. Additional treatment may be required for cold lines or moisture sensitive blasting.
