Description

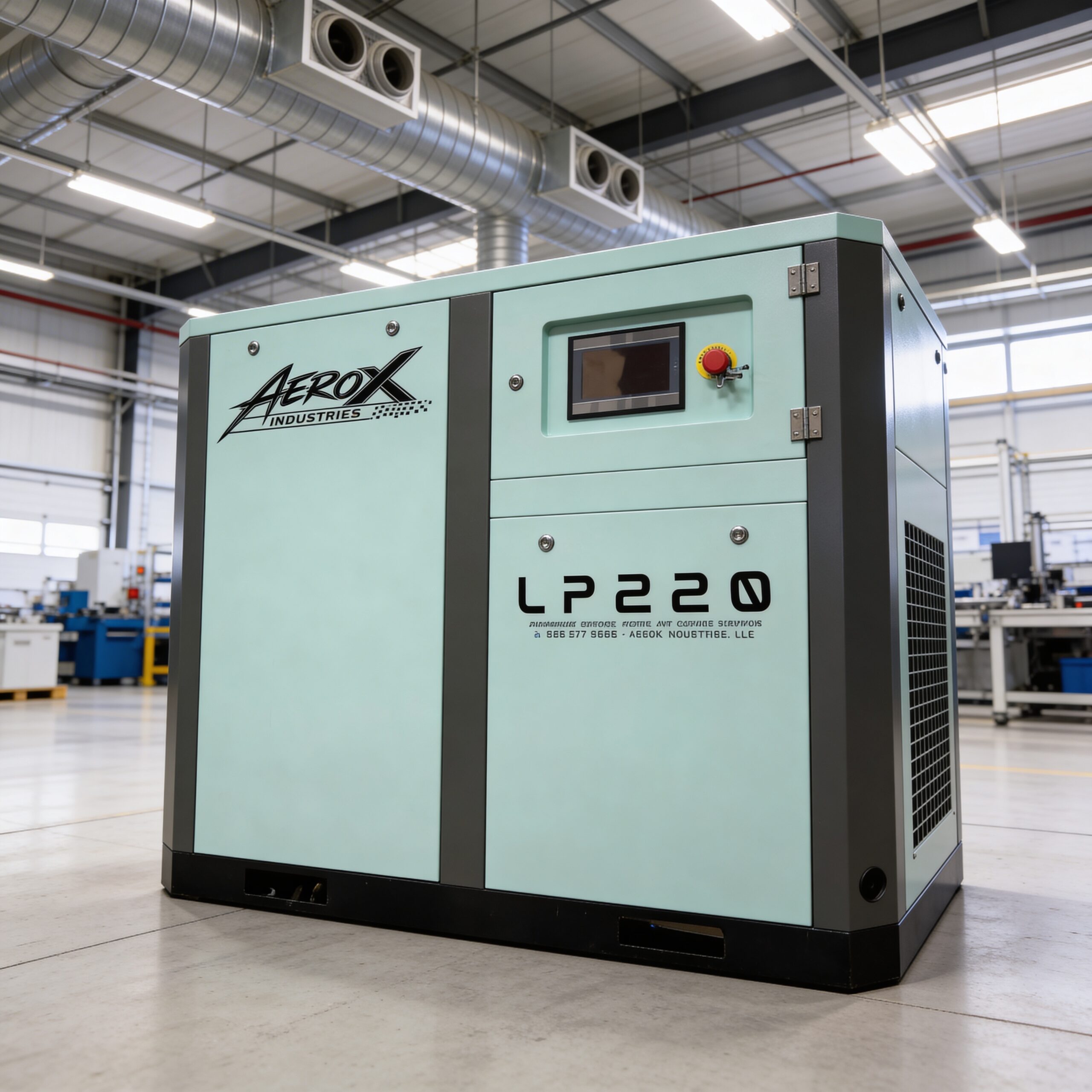

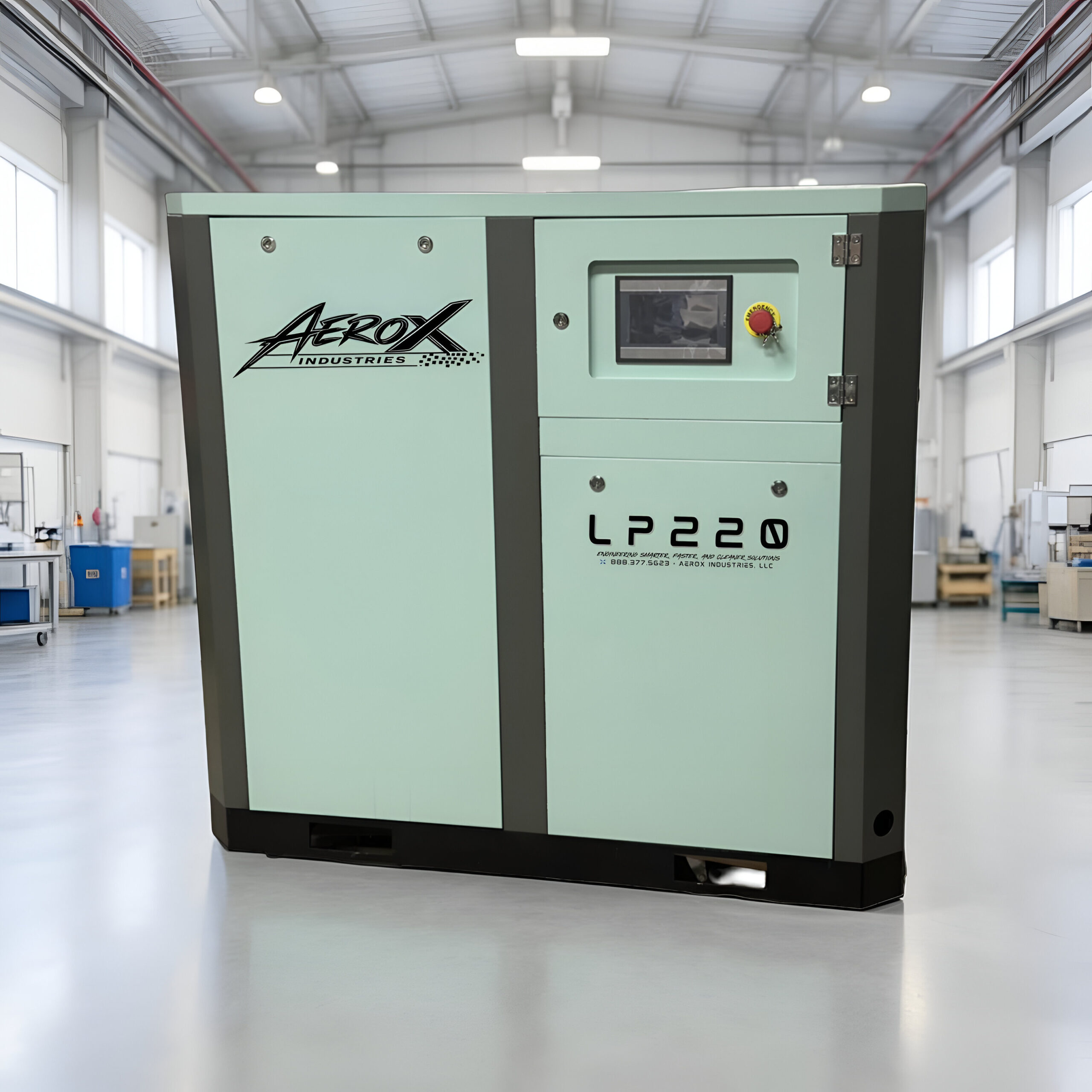

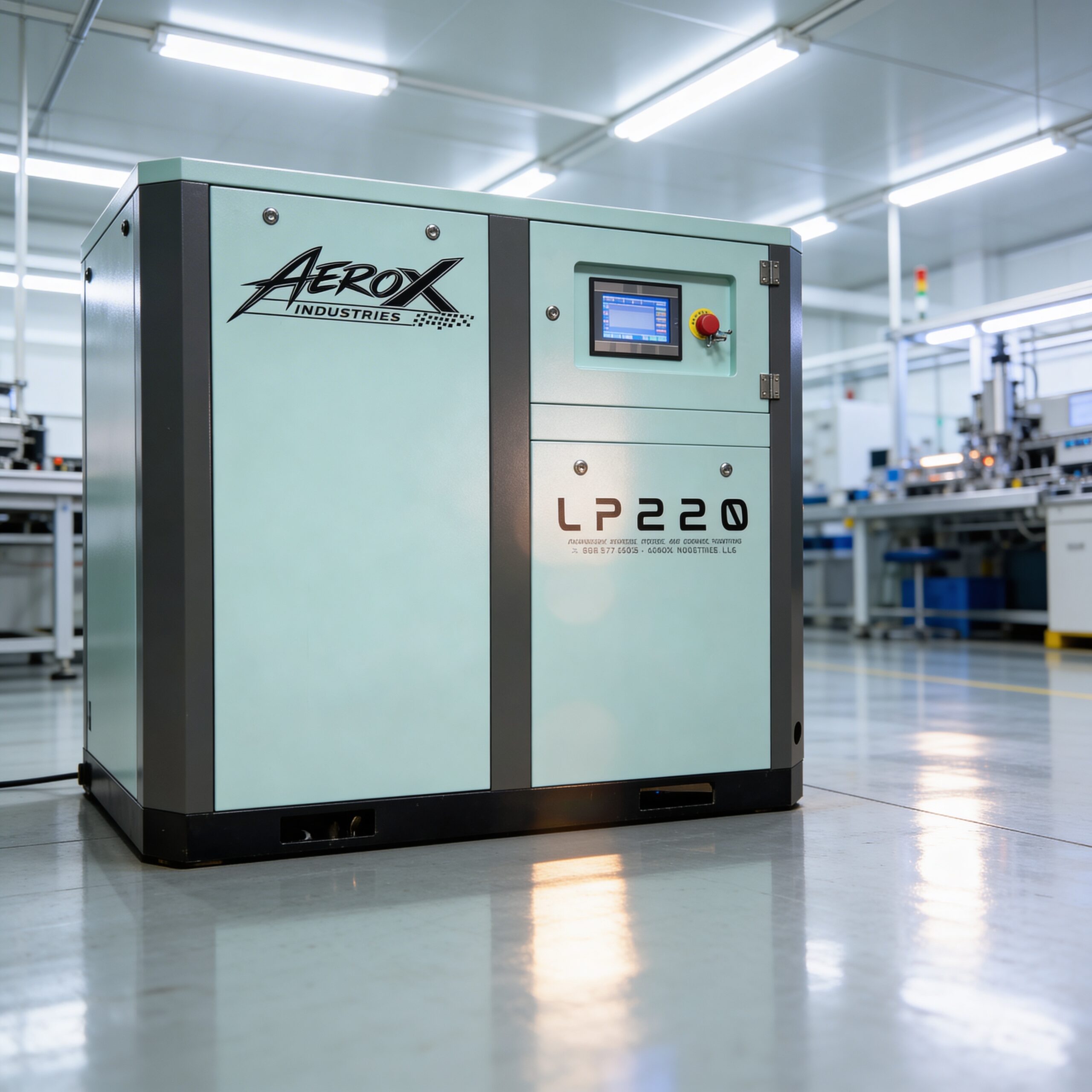

⚡ AeroX Industries LP220

50HP Rotary Screw Air Compressor

Maximum Industrial Airflow for Large-Scale Operations

At AeroX Industries, we don’t just sell equipment — we stand behind it. Every LP220 is backed by real professionals, real technicians, and real support staff based right here in the United States 🇺🇸.

From pre-sale system design to electrical planning, commissioning, and long-term operation, you’re working with experienced professionals who understand compressed air systems, industrial facilities, and high-demand applications like large-scale dry ice blasting.

We help you spec it correctly, install it properly, and keep it running at peak performance.

🔁 100% Continuous Duty Rated

The LP220 is engineered for nonstop industrial performance.

✔ True 100% duty-rated rotary screw design
✔ Built for multi-shift operations
✔ No cool-down cycles required
✔ Designed for sustained heavy loads

This is not a shop compressor. This is a full-scale industrial air platform.

🚀 Extreme Performance

At the core of the LP220 is a powerful 50HP motor delivering:

💨 232 CFM @ 116 PSI
💥 145 PSI Maximum Pressure

This airflow level is ideal for:

• Large dry ice blasting systems
• Multiple operators running simultaneously
• Manufacturing lines
• Heavy surface prep
• High air-demand production environments

When uptime matters, the LP220 delivers stable, consistent airflow without pressure drop.

❄️ Advanced Cooling & Thermal Management

Built for continuous heavy-duty operation, the LP220 includes:

✔ Oversized Variable Frequency Drive (VFD)
✔ Twin-fan cooling system
✔ High-capacity oil cooler
✔ Optimized internal airflow design

This system keeps operating temperatures stable even under sustained load.

🔌 True Industrial Three-Phase Power

The LP220 is a factory-configured three-phase machine.

⚡ Three-phase power only
⚡ Voltage configured at time of order
⚡ Low and high voltage options available
⚡ Not designed for field conversion

Electrical Requirements

• 208V Three-Phase: 100-amp breaker required
• Other three-phase voltages available upon request

AeroX confirms final electrical specs prior to shipment.

🧠 Intelligent Digital Controls

The LP220 features advanced digital control and monitoring:

📟 Real-time pressure and temperature display
🔄 Soft start / soft stop operation
🚨 Integrated fault alerts
⚙️ Energy-efficient VFD control

Designed to protect your investment and reduce downtime.

🛡 Advanced VFD Protection Systems

The LP220 continuously monitors:

✔ Phase loss protection
✔ Phase imbalance protection
✔ Over-voltage protection
✔ Under-voltage protection
✔ Motor overload protection
✔ Oil temperature monitoring
✔ Discharge air over-pressure safety

If abnormal conditions are detected, the system safely shuts down to prevent damage.

🏗 De-Coupled Industrial System Design

Unlike the LP40 and LP80 4-in-1 systems, the LP220 is a modular industrial platform.

Air tank, dryers, and filtration are added separately based on facility requirements.

Benefits include:

✔ Easier servicing
✔ Independent component replacement
✔ Scalable system expansion
✔ Custom system configuration
✔ Lower long-term maintenance cost
✔ Built for large facilities

❄️ Dry Ice Blasting Capability

The LP220 is built for heavy-duty dry ice blasting and large-scale operations.

It supports:

✔ Continuous heavy-duty blasting
✔ Multi-operator systems
✔ High-CFM industrial blasters
✔ Maximum production output

📊 Dry Ice Blaster Compatibility Chart

🟢 Light 🟡 Medium 🔵 Heavy

💨 Air Quality Integration

For applications where dry air is critical — especially dry ice blasting — the LP220 integrates seamlessly with:

• AirID Series Refrigerated Air Dryer
• AirID Series Desiccant Dryer

When properly configured, systems can achieve dew points as low as -68°F.

📊 Technical Specifications – LP220

• Compressor Type: Rotary Screw
• Motor Power: 50 HP
• Duty Rating: 100% Continuous Duty
• Air Delivery: 232 CFM @ 116 PSI
• Maximum Pressure: 145 PSI
• Air Outlet Size: 1.5″ NPT
• Operating Noise Level: 72 dB
• Drive System: Variable Frequency Drive
• System Type: De-Coupled Industrial Platform
• Power Requirement: Three-Phase Only
• Breaker Requirement (208V 3-Phase): 100 Amp
• Size – 52x37x48
• Weight – 1107 lbs

🔧 Available Upgrades & Options

✔ IP55 motor & electronics upgrade
✔ Larger LCD control screen
✔ Maintenance kits
✔ Extended warranty options
✔ Custom voltage configurations
✔ FST Pipe hardline air distribution systems
✔ Full system design consultation

🛡 Warranty Coverage

🔹 1-Year Parts Warranty
🔹 2-Year Compressor Core Coverage
🔹 Extended warranties available

Proof of purchase required. Shipping not included. Normal wear excluded.

🚀 Why Choose AeroX Industries?

AeroX is one of the only manufacturers offering:

✔ 100% duty-rated compressor platforms
✔ Advanced VFD protection systems
✔ Custom electrical configuration support
✔ Industrial system design assistance
✔ Real U.S.-based technical support

Most importantly, we are here to help you grow.

We don’t just ship machines. We help you build scalable compressed air systems that protect your investment and expand with your operation.
