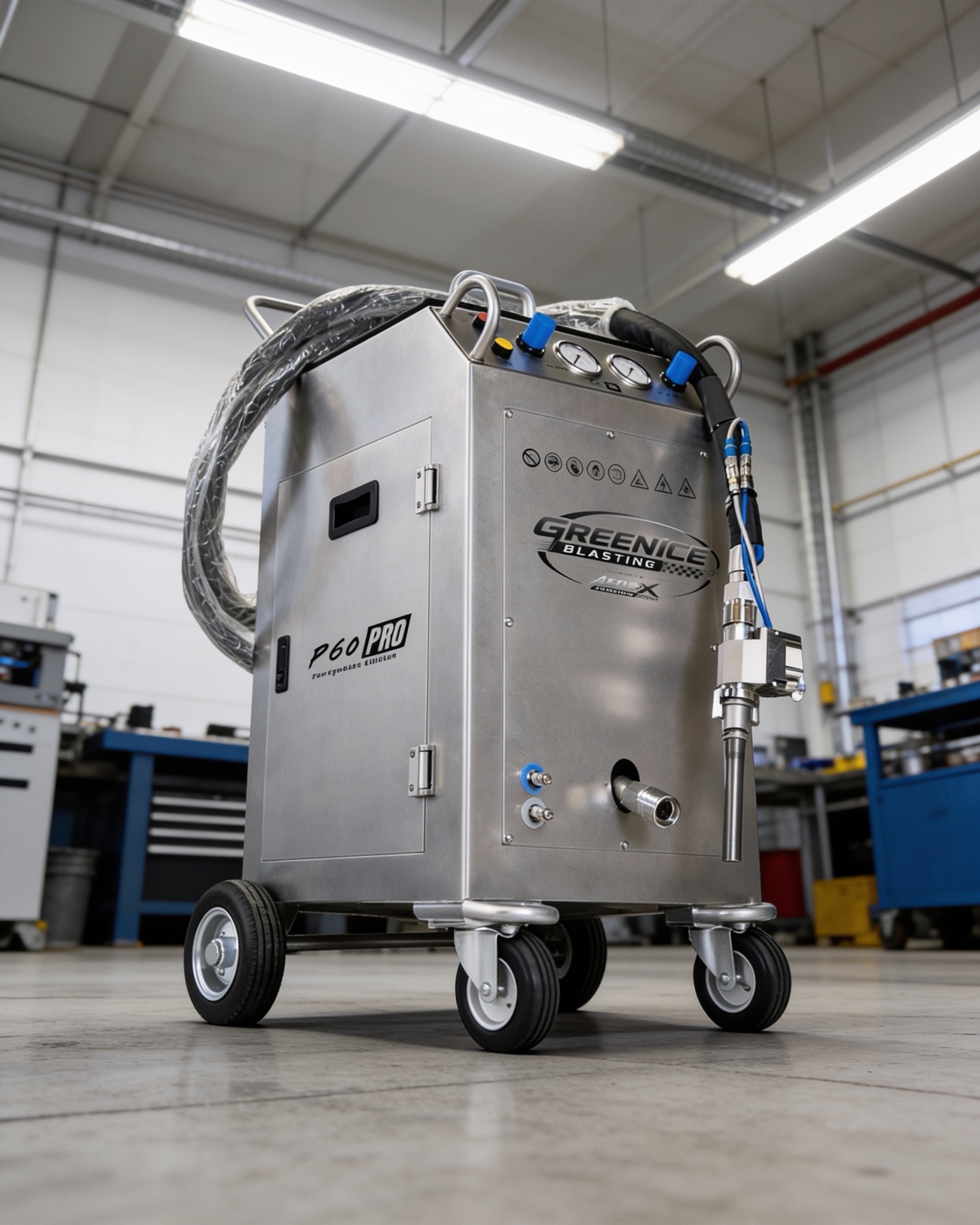

💨 AeroX P60 Pro

Professional Pneumatic Dry Ice Blasting System

ForgeLine 60 Series – Fully Air-Driven Platform

Mechanical reliability. Industrial durability. No electronics required.

The AeroX P60 Pro™ is the fully pneumatic workhorse of the ForgeLine 60 Series lineup — built for professionals who demand rugged simplicity and maximum uptime in demanding environments.

No PLC.
No circuit boards.
No electrical dependency.

If you have compressed air, you have power.

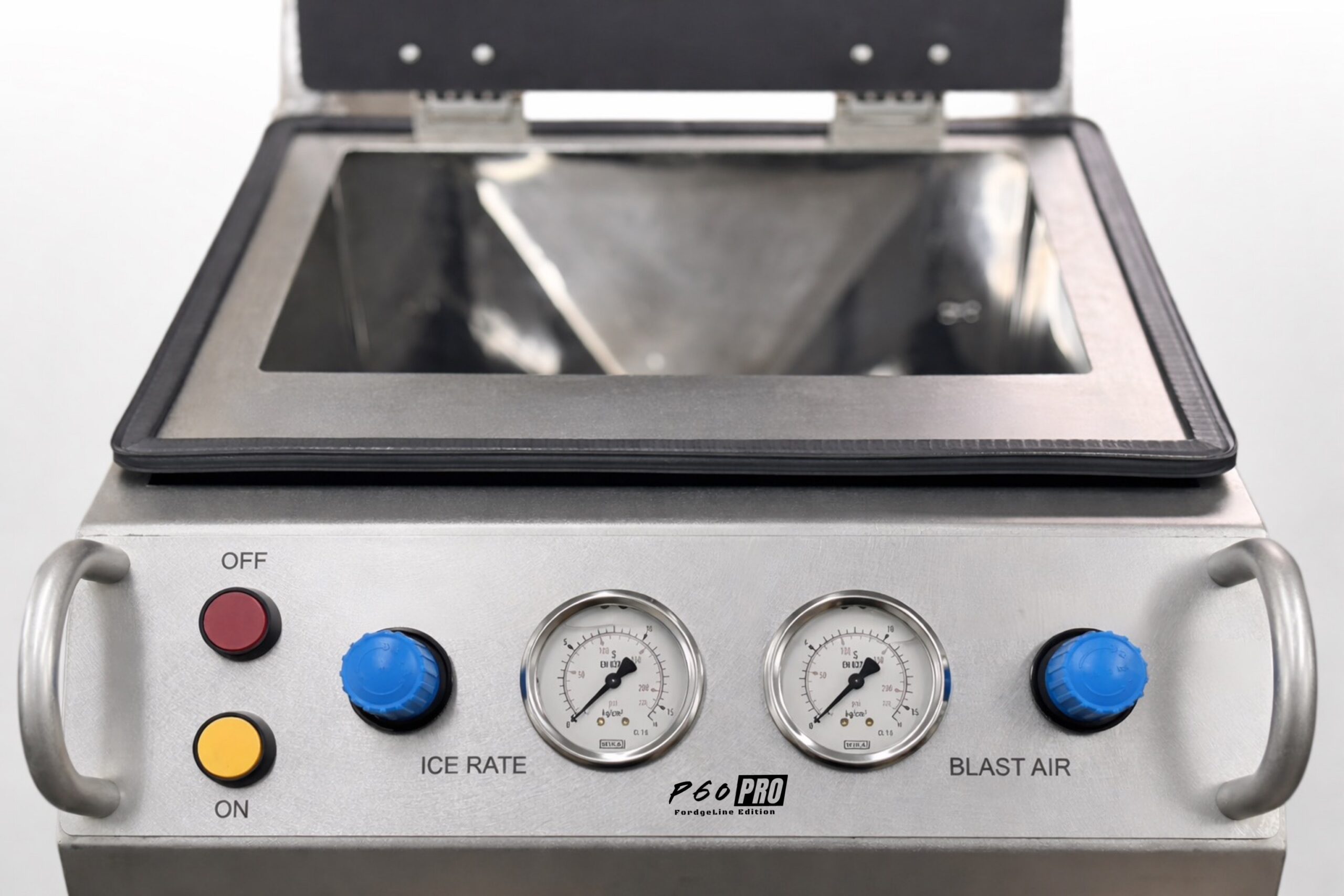

⚙️ Fully Pneumatic Air Command™ Control System

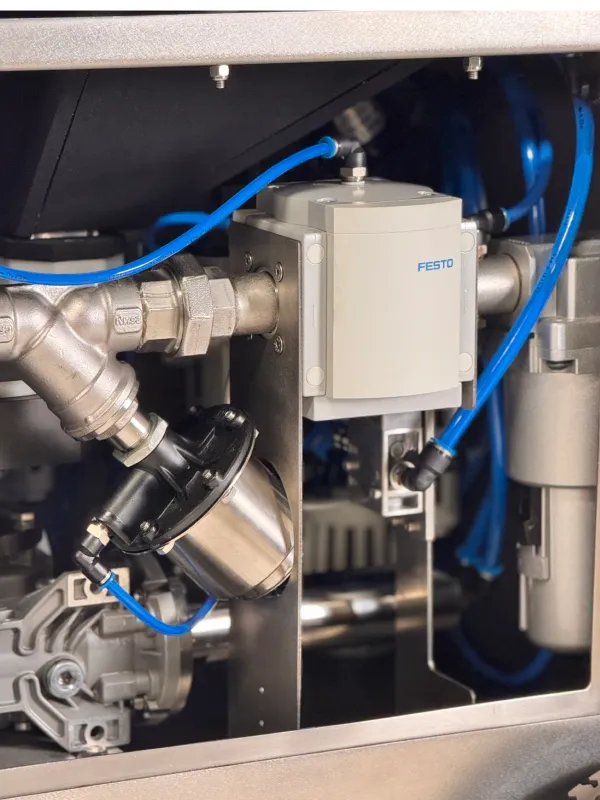

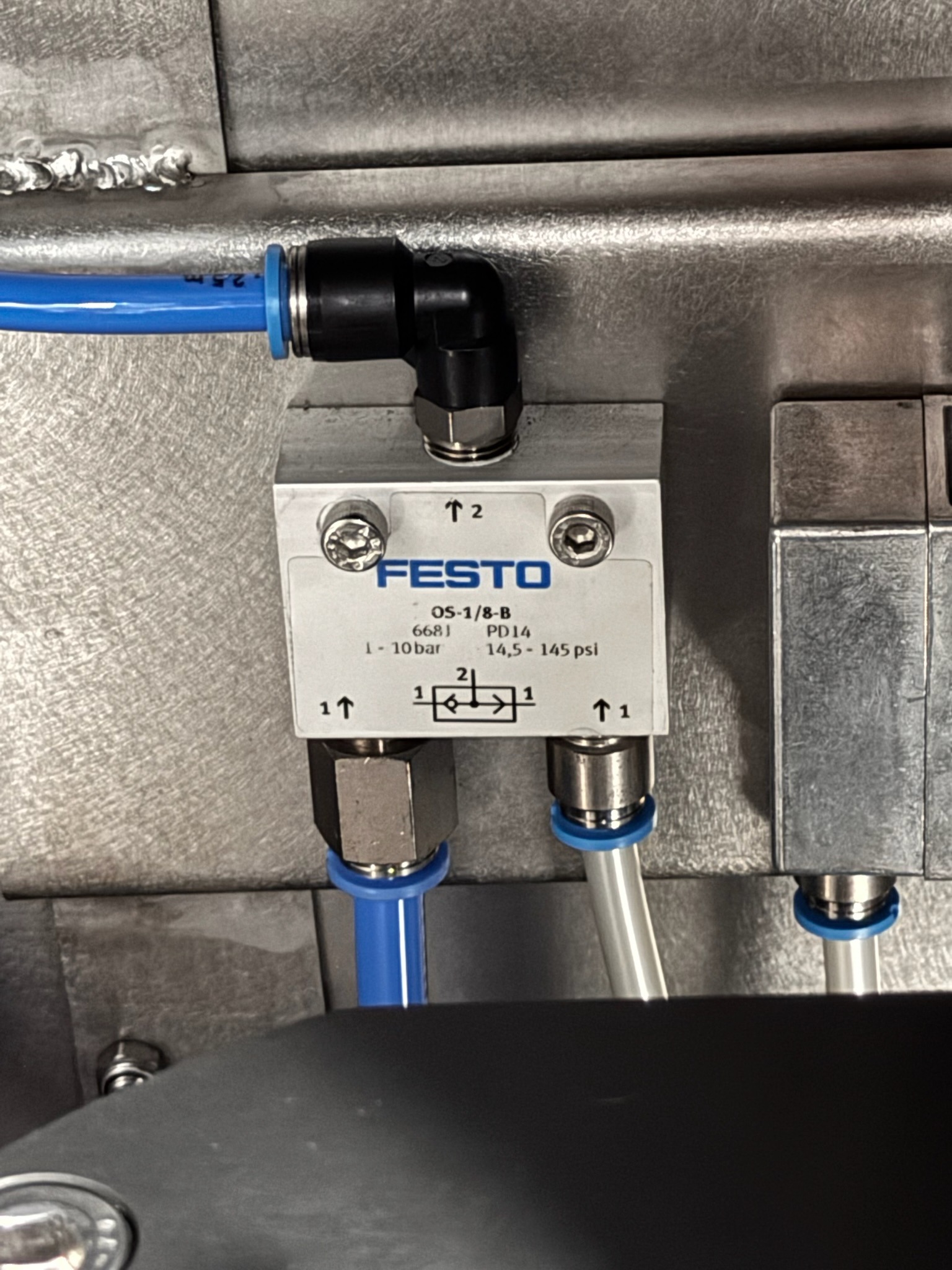

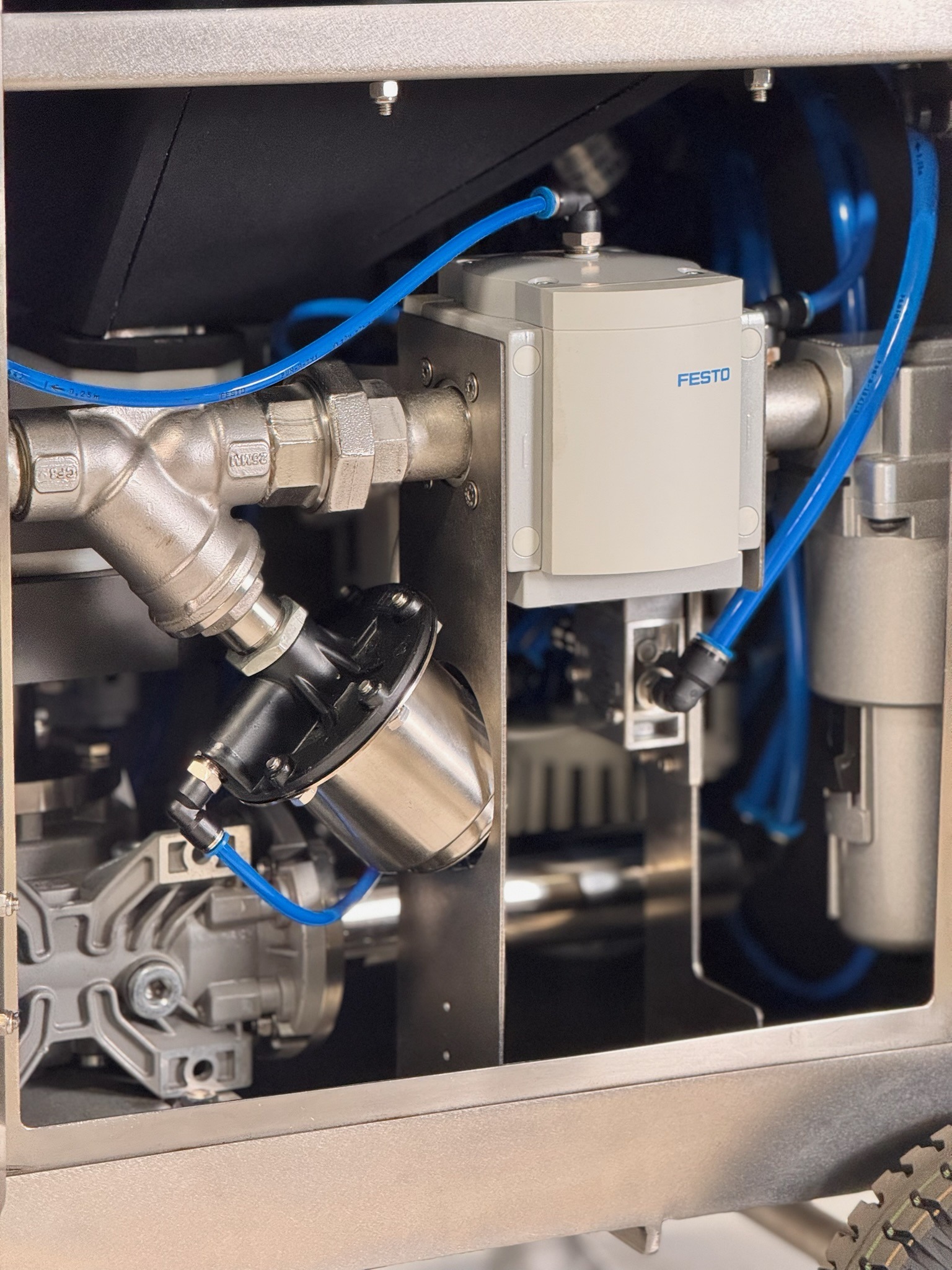

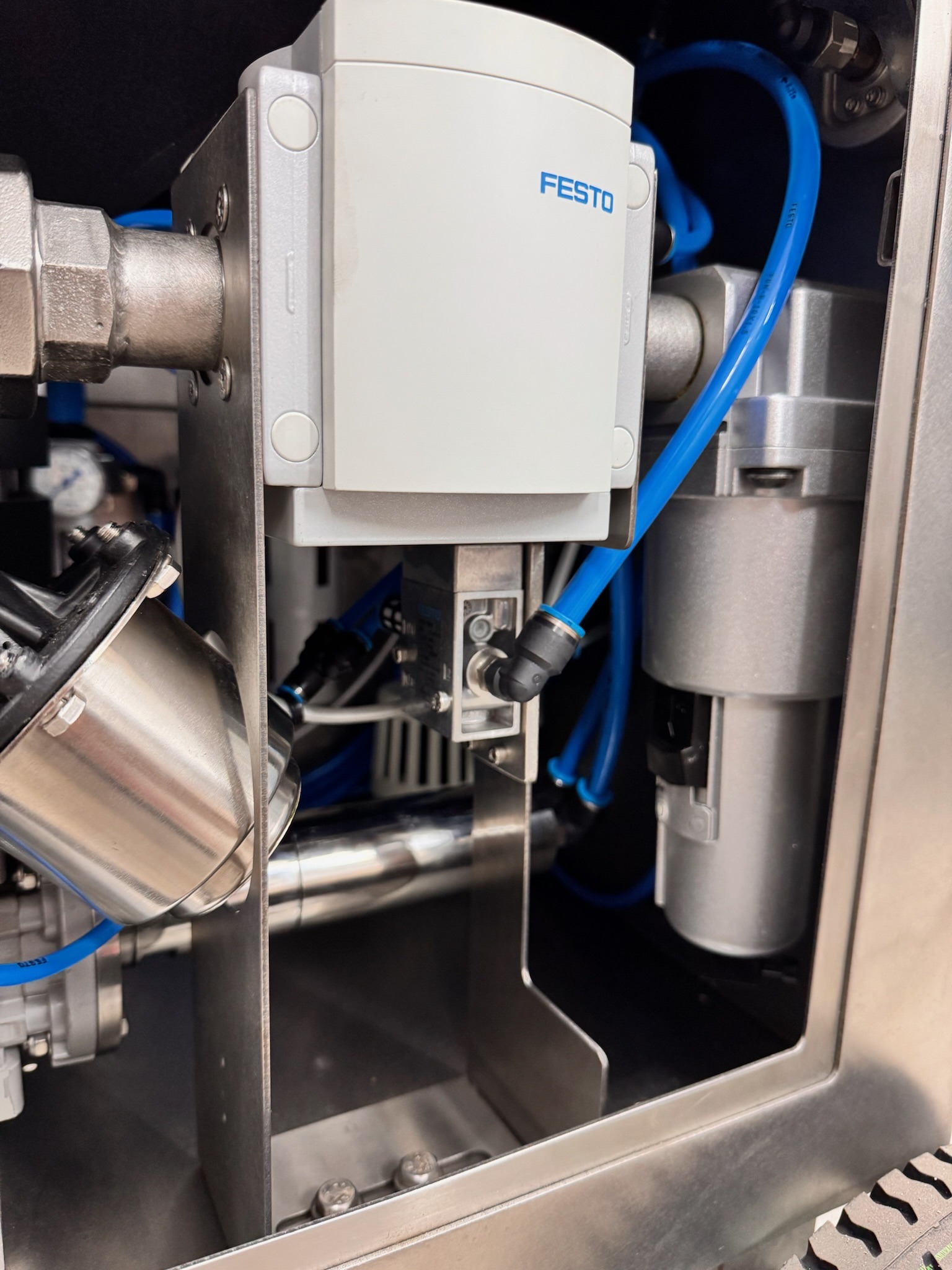

The P60 Pro operates entirely on compressed air using AeroX’s Air Command™ pneumatic control system.

This makes it ideal for:

• Remote job sites
• Marine environments
• Oil & gas applications
• Mobile diesel compressor setups
• Harsh industrial conditions

It is immune to voltage drops, electrical failure, and power inconsistencies.

💨 Air Usage Trade-Off (Important to Understand)

Because the P60 Pro is fully pneumatic, it uses approximately 10–15% of your total available CFM to power:

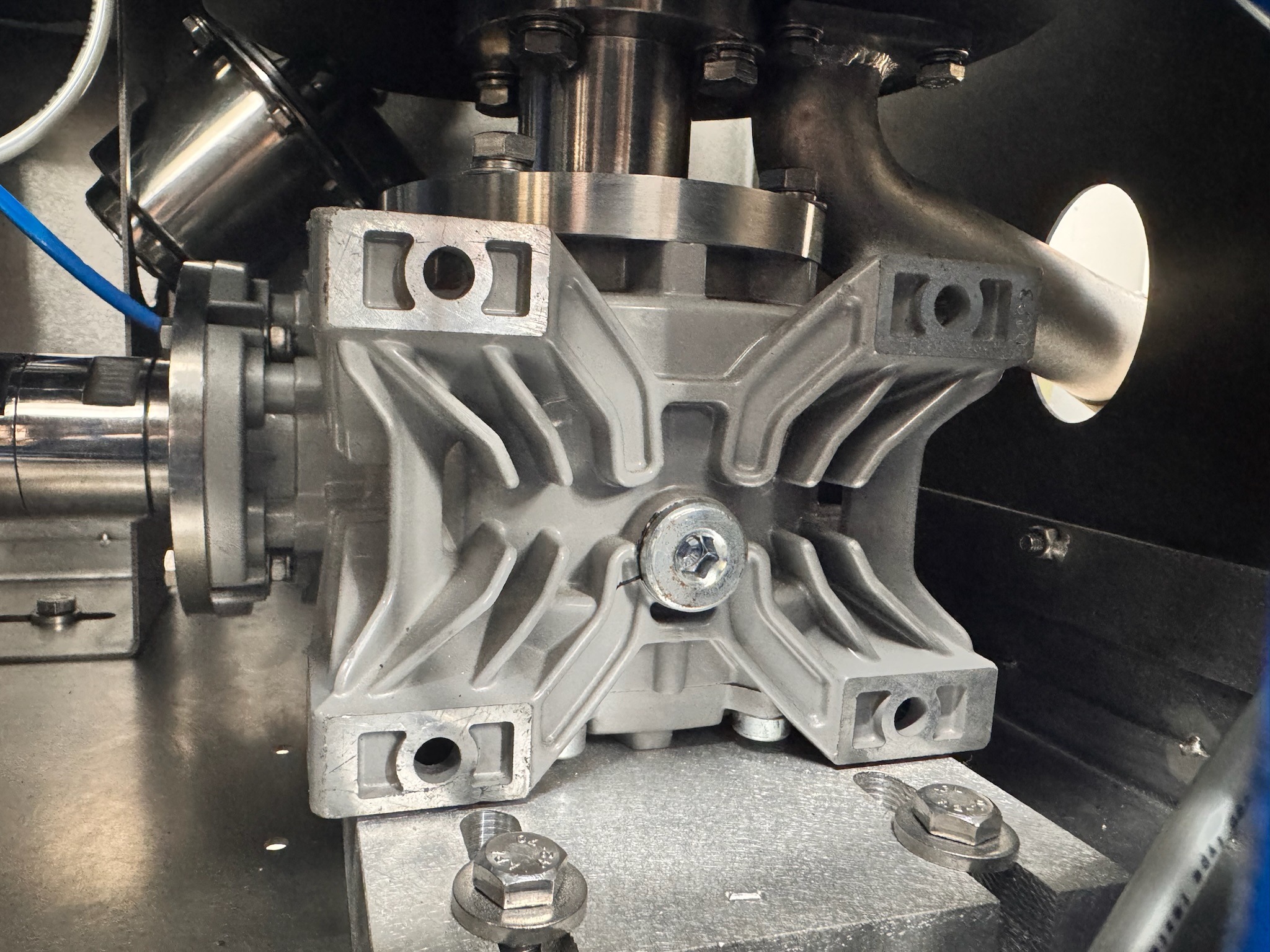

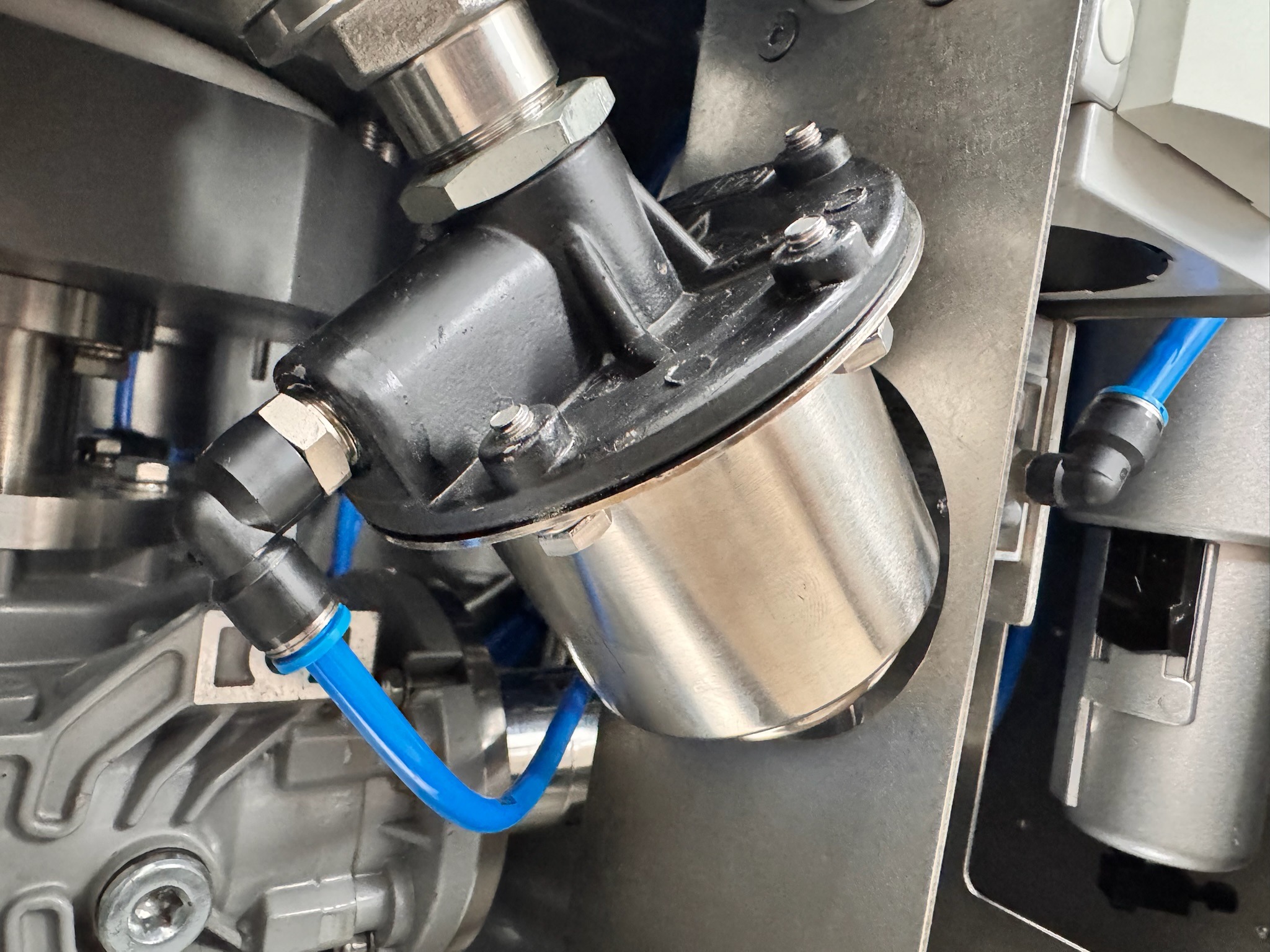

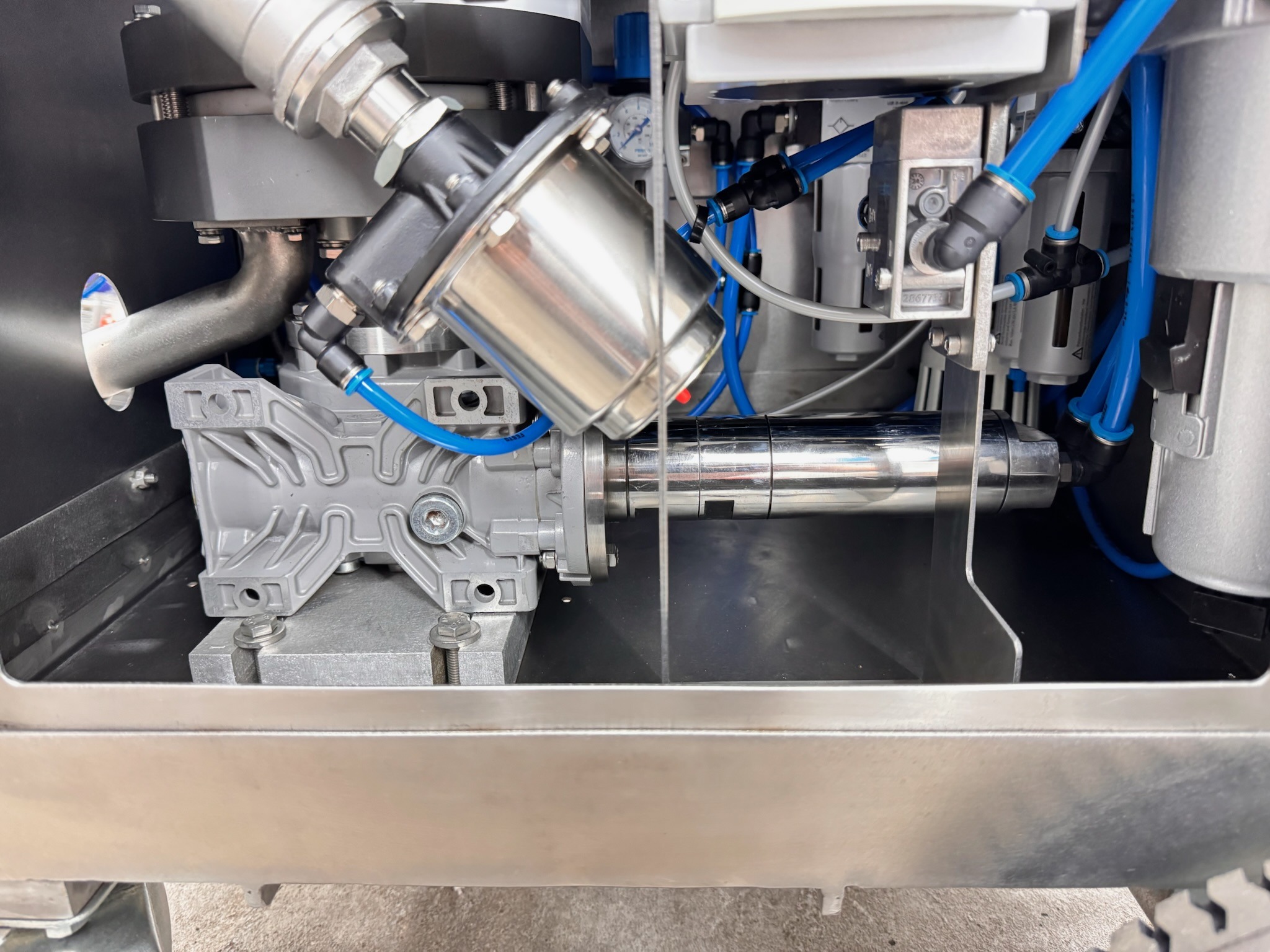

• Ice dosing motor
• Pneumatic vibration system
• Internal control logic
• Pneumatic oiling system

Example:
If running a 185 CFM compressor, roughly 160–165 CFM remains available for blasting.

This is the trade-off for mechanical reliability — and why correct compressor sizing is critical.

At AeroX, we help you dial in your airflow system to ensure you get exactly the performance you expect.

⚙️ High-CFM Industrial Platform

The P60 Pro features a 1” NPT air inlet and is built for serious airflow.

Minimum usable airflow: approximately 130 CFM
Recommended airflow: 185 CFM
Heavy-duty airflow: 375 CFM for maintaining higher pressures and wider coverage

PSI without sufficient CFM will not sustain performance.
Proper air volume is critical.

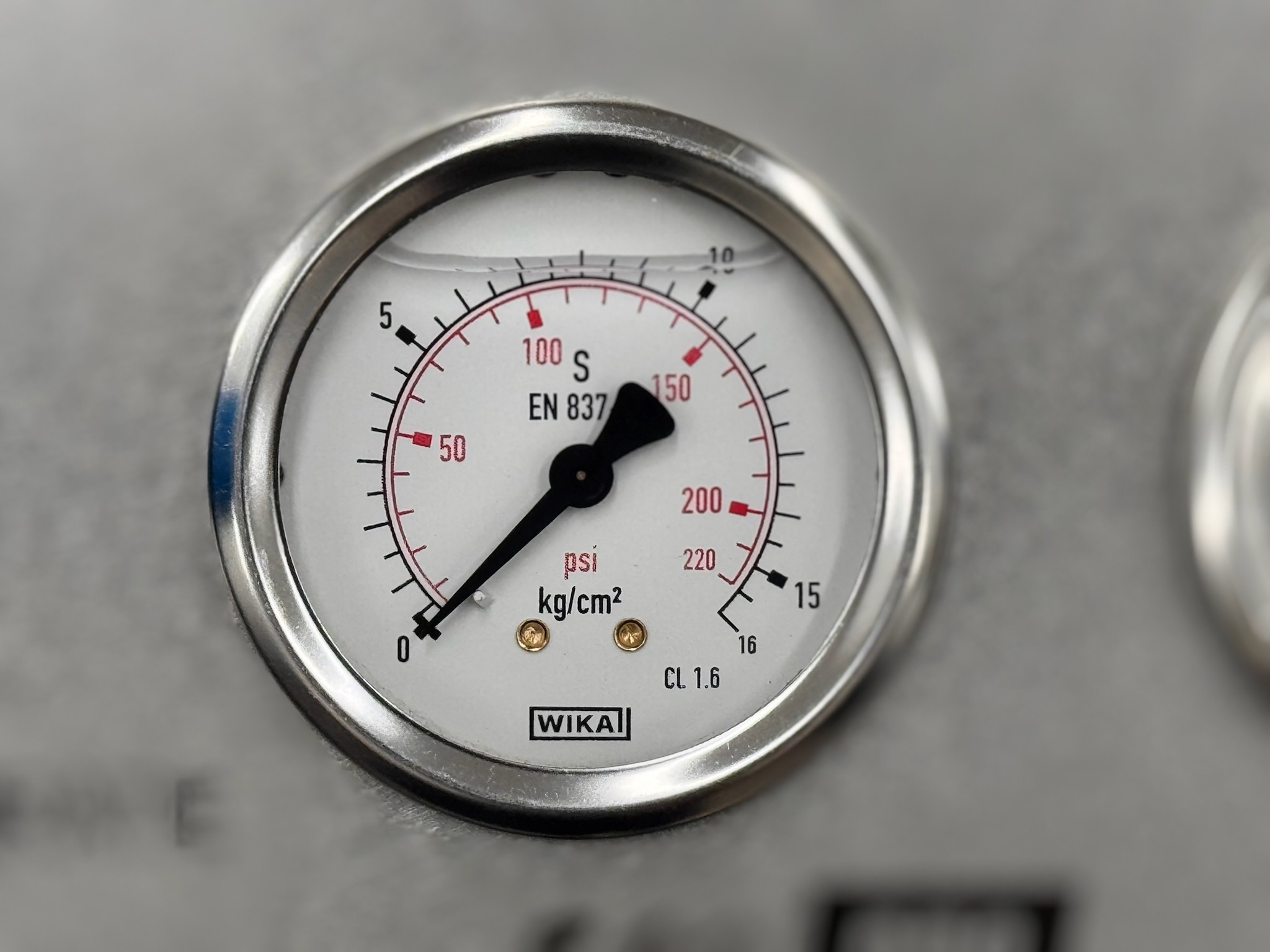

⚡ Standard & High-Pressure Options

Standard Model
Operating pressure up to 145 PSI

High Pressure Upgrade Available
Up to 232 PSI

If your work requires additional blasting energy for heavy coatings or industrial buildup, inquire about upgrading to the High Pressure configuration.

We can also retrofit previously purchased P60 Pro units to High Pressure specification.

📊 Technical Specifications

Model: AeroX P60 Pro
Platform: ForgeLine 60 Series

Air Inlet: 1” NPT
Air Requirement: 130–375 CFM
Standard Operating Pressure: 45–145 PSI
High Pressure Model: 45–232 PSI

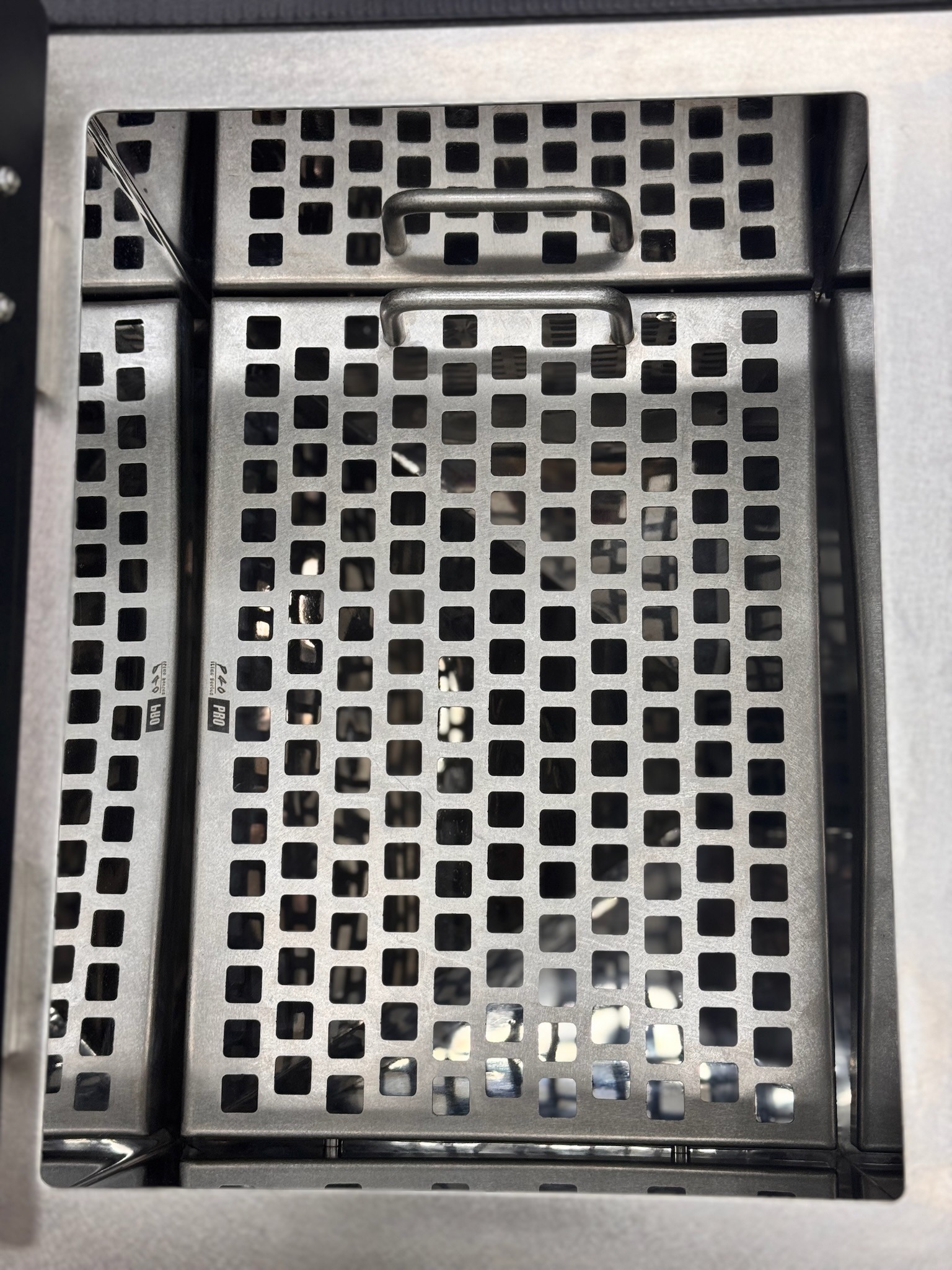

Hopper Capacity: 55 lbs
Dry Ice Consumption: 0–155 lbs per hour

Dimensions: 28” L × 25” W × 41.5” H
Weight: 243 lbs

Control System: Fully Pneumatic Air Command™
Moisture Separator: Integrated
Pneumatic Oiling System: Integrated
Warranty: 1 Year Limited

📦 What’s Included with the P60 Pro Professional Blasting Unit

• Professional blasting gun
• 15-foot blasting hose (longer hose options available)
• Fragmenting adapter
• Two blasting nozzles
• Hard protective case for nozzles and gun

The P60 Pro is dry-ice ready out of the box, with media capability available when you need expanded service offerings.

❄️ Fragmenting Adapter Included

Every ForgeLine 60 Series machine includes the fragmenting adapter.

This allows you to:

• Reduce pellet size from 3mm to approximately 2mm
• Improve cleaning on porous surfaces
• Reach tight corners
• Reduce density for delicate applications

More versatility without additional equipment.

⚡ Integrated Static Protection

The P60 Pro includes a 10” retractable grounding strap mounted on the front of the unit.

This allows you to:

• Ground the surface being blasted
• Reduce static buildup
• Improve safety in sensitive environments

Professional detail built into the machine.

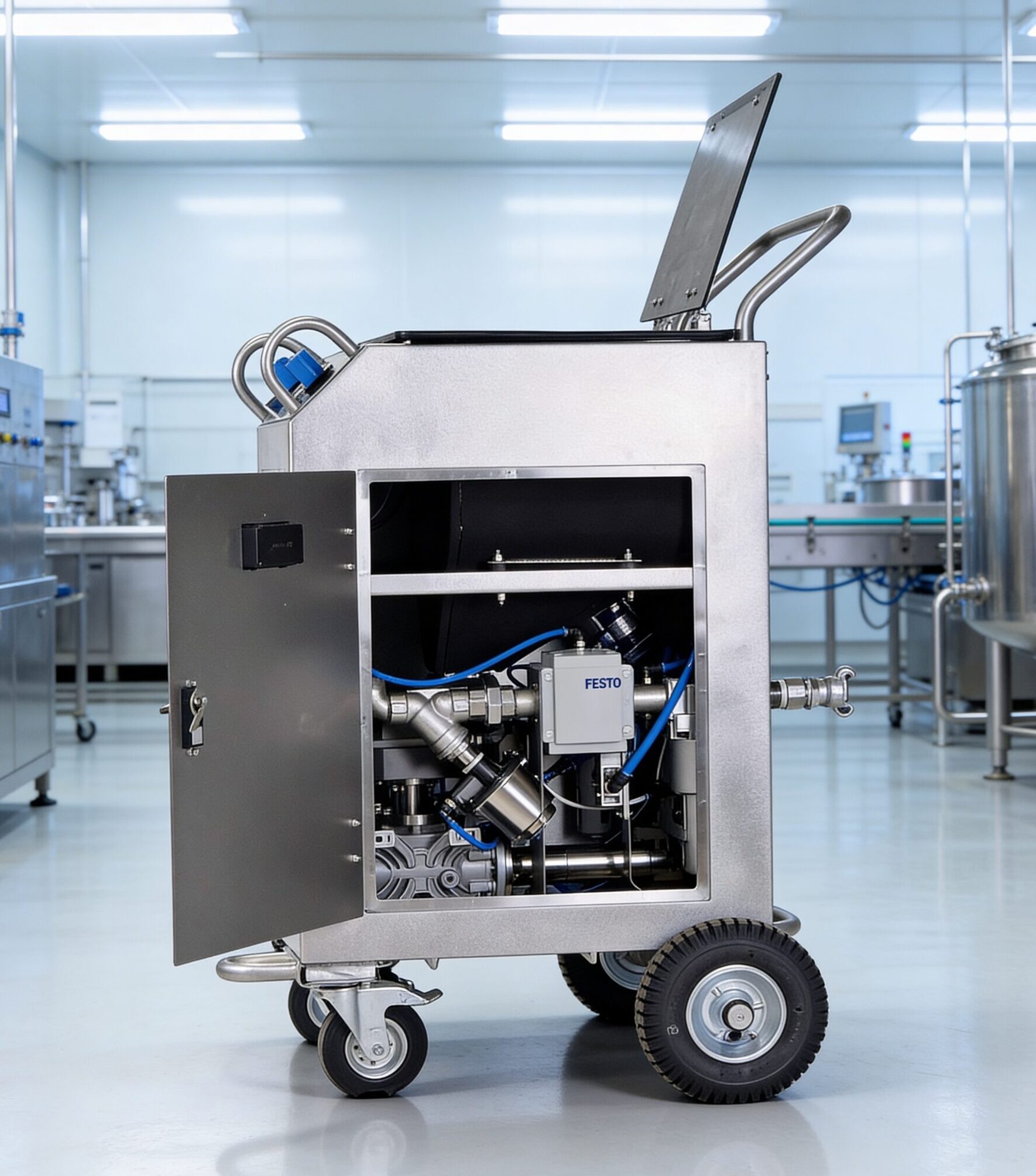

🏗 Built for Real Industrial Use

• Heavy-duty steel construction
• Reinforced frame
• Industrial mobility wheels

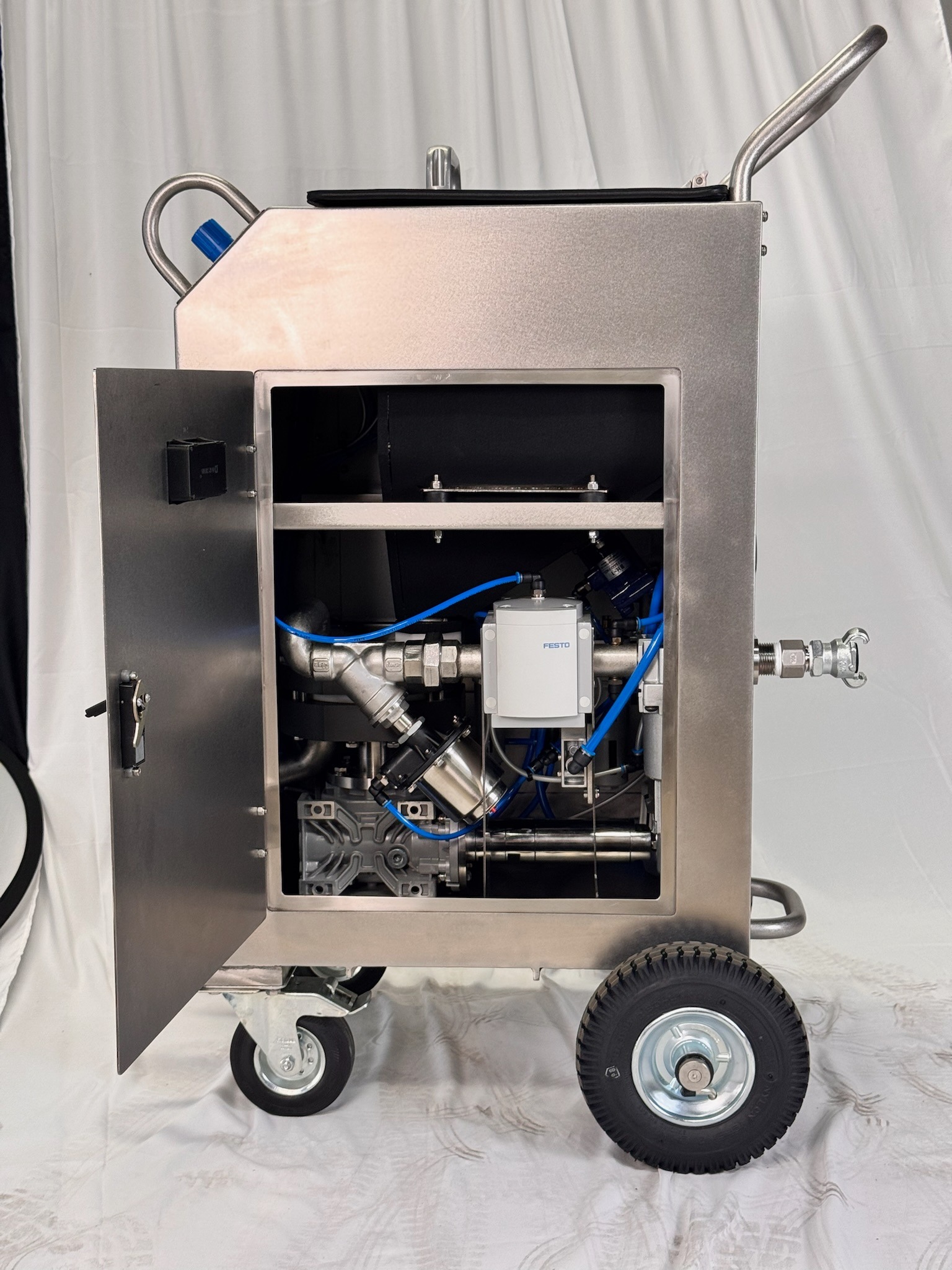

• Easy-access service panels
• Designed for daily commercial operation

This is a field-ready machine built to perform under pressure.

🚀 Backed by AeroX Industries

When you invest in the P60 Pro, you gain more than a machine.

You gain:

• Proper compressor sizing support
• Air system configuration guidance
• PSI vs CFM education
• Long-term service backing
• Real U.S.-based support

We are here to make sure your system performs exactly how it should.

🎯 Who Is This For?

• Contractors who work in remote environments
• Operators who prefer mechanical reliability
• Diesel compressor users
• Industrial maintenance teams
• Professionals who want simplicity without sacrificing power

The P60 Pro is the no-nonsense industrial blaster of the 60 Series lineup.
