AEROX INDUSTRIES
Heatless desiccant drying

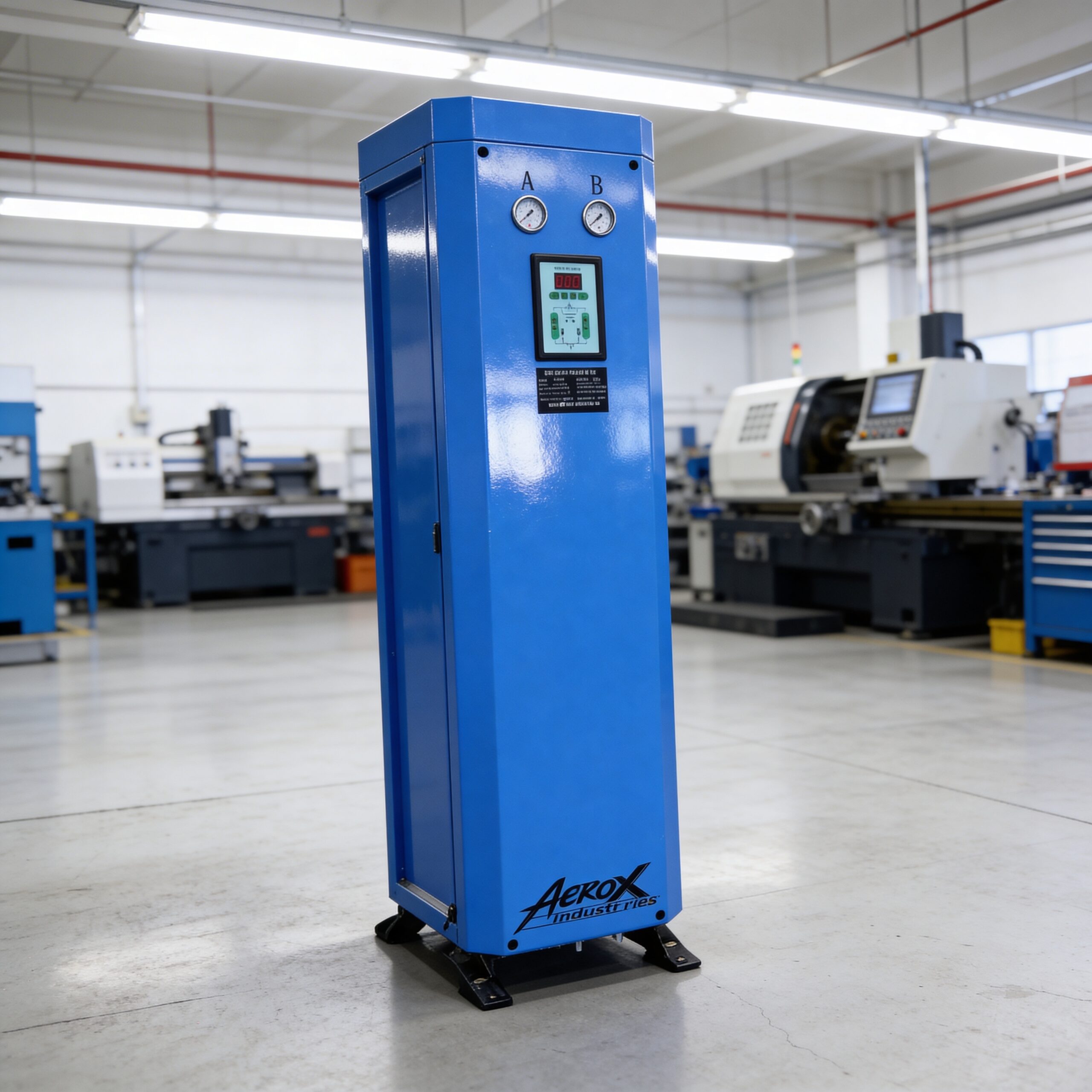

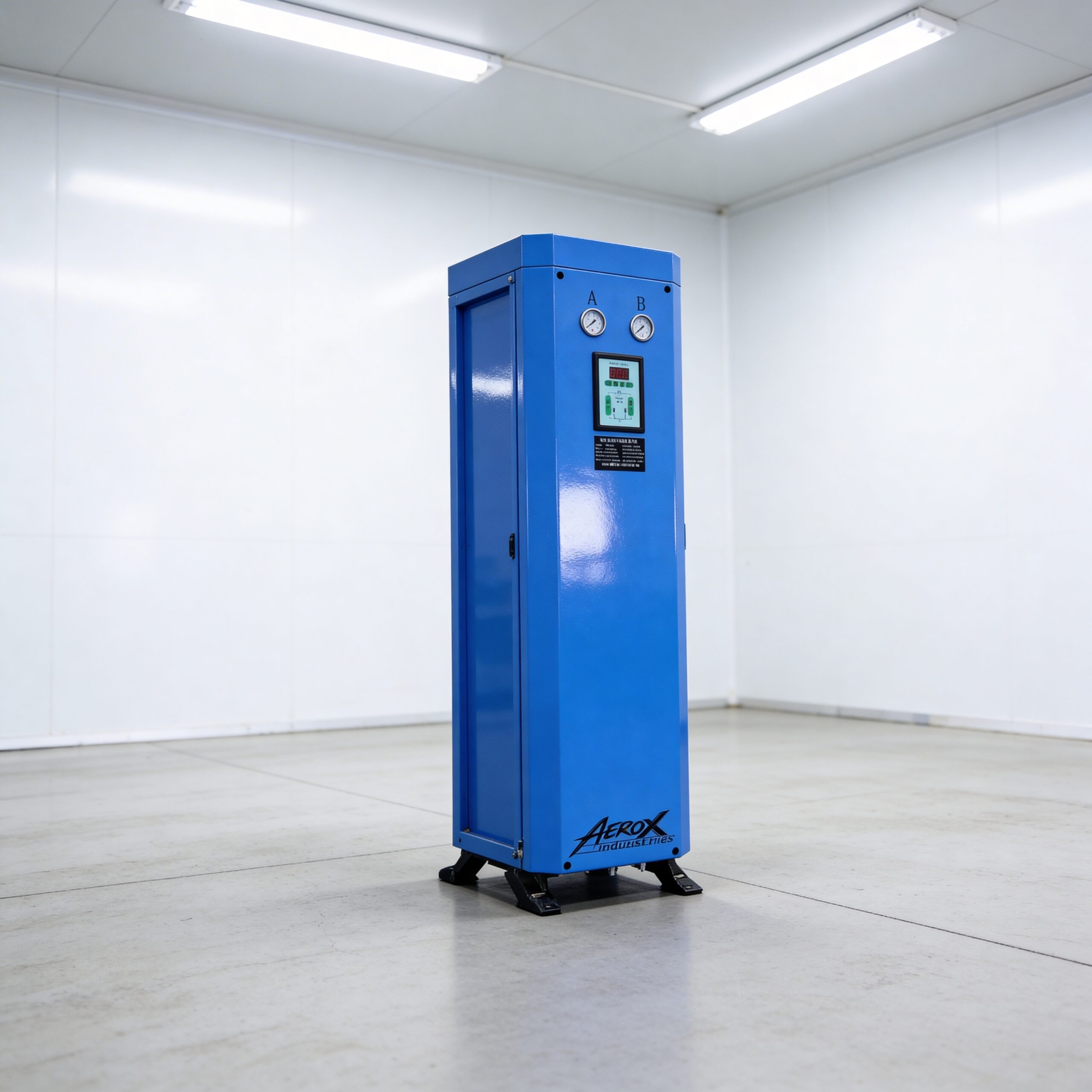

AeroX AirID 140
Lower dew point for moisture sensitive work.
The AirID 140 uses a twin tower regenerative desiccant system to remove water vapor from compressed air. Its 140 CFM rated capacity supports correctly sized blasting and industrial air systems where a lower dew point is required.
PURPOSE BUILT FOR YOUR WORK
Features that support the process
01
Adsorb water vapor
Desiccant media removes moisture beyond the dew point range of refrigerated drying.
02
Regenerate automatically
A timed cycle alternates towers while a portion of dry air regenerates the offline tower.
03
Protect the process
Proper upstream cooling and filtration help maintain drying performance and desiccant condition.
APPLICATIONS
Where it fits
Dry ice blasting
Reduce moisture exposure in appropriately sized cleaning systems.
Precision process air
Condition air for applications with a specified dew point requirement.
Humid operating conditions
Review inlet conditions and treatment capacity for your location.
PRODUCT DETAILS
Specifications at a glance
| Dryer type | Heatless regenerative desiccant |
|---|---|
| Rated capacity | 140 CFM |
| Pressure dew point | Down to −68°F under suitable rated conditions |
| Towers | Two |
| Published purge use | Approximately 6–8% of dry air |
| Standard power | 120V / 60 Hz / single phase |
| Optional power | 220V configuration available |
| Published port designation | G1; verify thread standard before ordering |
PLAN THE RIGHT SETUP
Selection and operating notes
- Size around flow, inlet temperature, pressure, humidity and purge consumption. Include regeneration air when calculating the compressor capacity required at the tool.
- Do not assume operation above rated capacity preserves dew point. Confirm correction factors and limits for the proposed installation.
- Provide suitable upstream liquid separation and oil filtration. Monitor dew point, pressure drop, drains and desiccant condition.
- G1 and 1 in NPT are different thread standards. Confirm the delivered connections and use the correct adapters.
